SDK Blueprint

Package Overview

This package contains a complete AI-powered restaurant menu assistant solution, including:

• Two Production-Ready SDKs for voice-enabled menu interactions
• Fully Functional Demo Application showcasing all features
• Complete Source Code for the demo app
• Menu Configuration System for easy customization
• Integration Documentation and code examples

SDK Files

Two Android SDK files (AAR format) ready for integration into your own applications:

GMK_V1.0.aar - Core SDK (~390MB)

What it does:

• Processes natural language menu queries
• Understands item names, modifications, and quantities
• Manages shopping cart operations
• Provides intelligent menu recommendations
• Supports both local AI processing and cloud AI

Core Capabilities:

• Menu item search and filtering
• Cart operations (add, remove, modify items)
• Order total calculations
• Natural language understanding
• Dietary preference filtering (vegetarian, vegan, etc.)

GWK6490_V1.0.aar - Voice Processing SDK (~300MB)

What it does:

• Converts speech to text with high accuracy
• Converts text responses back to speech
• Optimized for restaurant/menu terminology
• Real-time audio processing

Core Capabilities:

• Speech-to-text transcription
• Text-to-speech output
• Noise reduction and audio enhancement
• Real-time processing (< 3 seconds end-to-end)

⚠️ Important Setup Note

When you first open the demo app project in Android Studio, you'll need to update the Android SDK path:

What to update:

• File: local.properties (in the root folder)
• Current path: sdk.dir=/Users/NathanJ/Library/Android/sdk
• Update to: Your local Android SDK path

How Android Studio helps:

• Android Studio will automatically detect this issue
• You'll see a prompt: "Gradle sync failed: SDK location not found"
• Click "Fix" or "Update SDK Location" and Android Studio will update it for you
• Alternatively, manually edit local.properties and set sdk.dir to your Android SDK installation path

Finding your Android SDK path:

• macOS: Usually /Users/YourUsername/Library/Android/sdk
• Windows: Usually C:\Users\YourUsername\AppData\Local\Android\Sdk
• Linux: Usually /home/YourUsername/Android/Sdk

Step 1: Prerequisites

Before installation, verify that your development environment meets the following:

• Android Studio Electric Eel (2022.1.1) or newer
• Gradle 7.0+
• Android SDK API Level 33
• Device running Android 13 or later
• Minimum 4 GB RAM and 64-bit ARM processor

Step 2: Importing the SDK

Copy the following AAR files into your project's /libs directory:

• GMK_V1.0.aar — Core SDK
• GWK6490_V1.0.aar — Whisper ASR integration module

Open your app-level build.gradle file and include:

repositories {
    flatDir {
        dirs 'libs'
    }
}

dependencies {
    implementation(name: 'GMK_V1.0', ext: 'aar')
    implementation(name: 'GWK6490_V1.0', ext: 'aar')
    implementation 'org.json:json:20210307'
    implementation 'androidx.appcompat:appcompat:1.5.1'
    implementation 'com.microsoft.onnxruntime:onnxruntime-android:1.15.1'
}

Sync the project to ensure all dependencies are resolved successfully.

Step 3: Permissions

The SDK requires a few Android runtime permissions:

<uses-permission android:name="android.permission.RECORD_AUDIO" />
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />

Ensure microphone access is granted during first launch to enable voice input via Whisper ASR.

Step 1: Launch Application

• Install the generated APK on your Qualcomm 6490 device.
• The Menu Assistant icon will appear on the home screen or app drawer.
• Tap the icon to open the assistant interface.

Step 2: Initialize the Model

Upon first launch, the app will require initialization of the local LLM and ASR components:

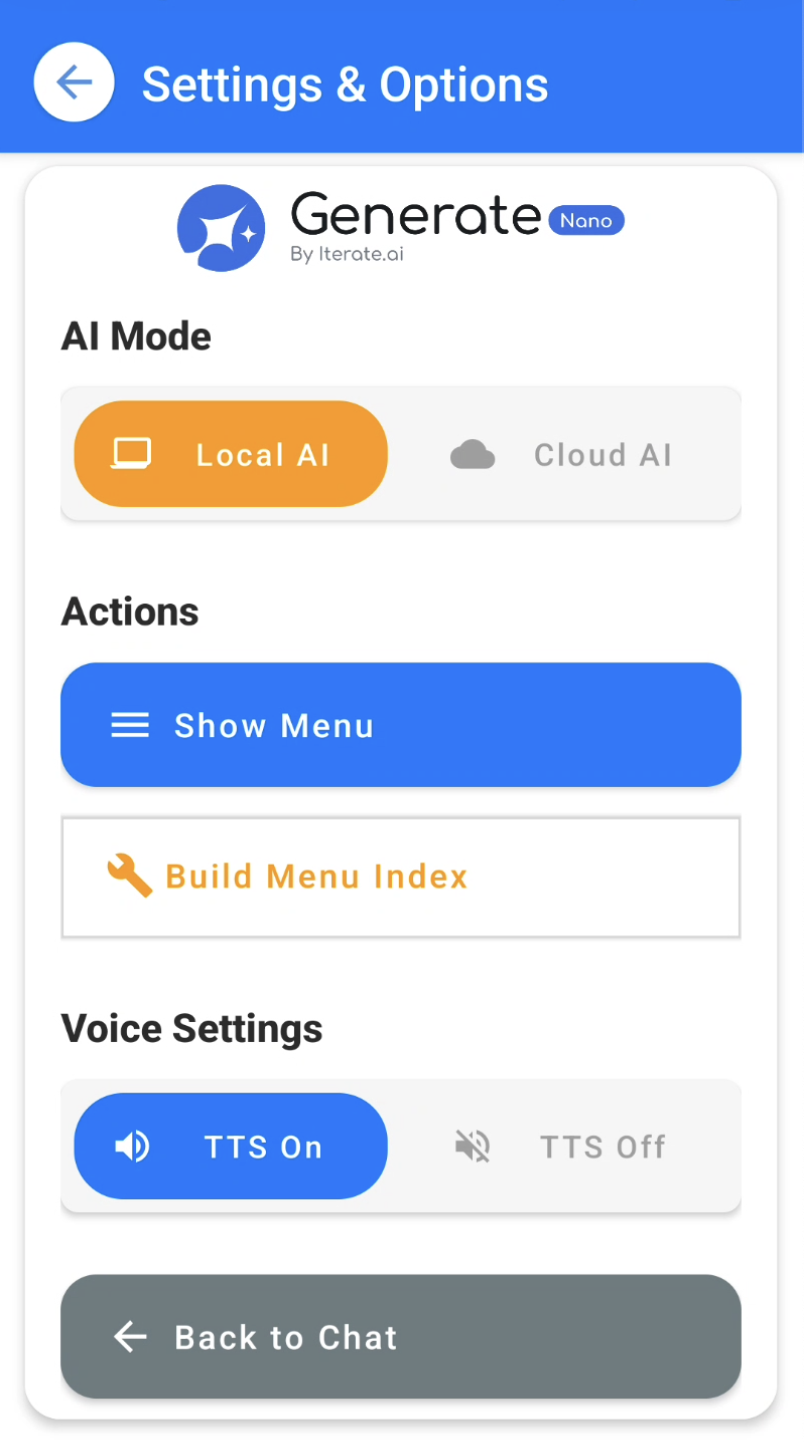

• Navigate to Settings within the app (bottom-right icon).
• Select Build Menu Index to setup the menu data for the LLM
• Once the embedding is completed, continue with regualr queries and functions.

Step 3: Verifying Setup

After menu loading:

• Speak or type a menu query (e.g., "What appetizers do you have?").
• The LLM should respond conversationally using data from the local menu dataset.
• Voice-to-text transcription should appear in real time during audio input.

Configuration File: app_config.json

This file defines paths, model options, and UI parameters:

{
  "model_path": "models/menu_assistant.gguf",
  "asr_model": "models/whisper_small.bin",
  "menu_file": "assets/menu.json",
  "language": "en",
  "max_response_tokens": 256,
  "enable_logging": true
}

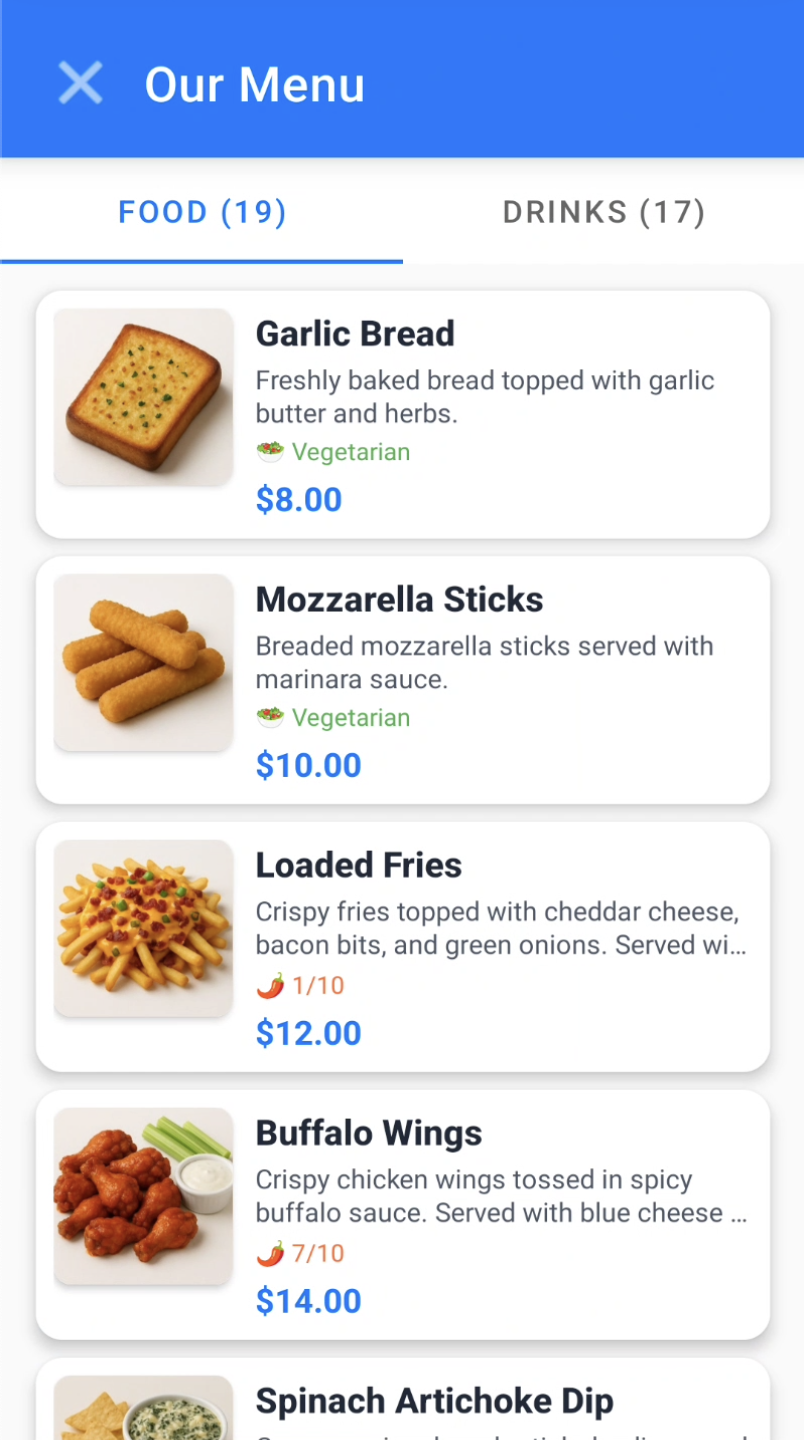

Menu Configuration

The SDK uses a JSON format for menu configuration. Your menu file should be placed in app/src/main/assets/menu.json:

{
  "menu": [
    {
      "id": 1,
      "name": "Cheeseburger",
      "category": "Large Plates",
      "description": "Classic burger with cheese, lettuce, tomato",
      "price": 16.00,
      "image": "cheeseburger.jpg",
      "dietary": ["contains_dairy", "contains_gluten"],
      "spiciness": "0/10",
      "keywords": ["burger", "beef", "cheese", "sandwich"],
      "allergens": ["dairy", "gluten", "soy"]
    },
    {
      "id": 2,
      "name": "Caesar Salad",
      "category": "Small Plates",
      "description": "Crisp romaine lettuce with Caesar dressing",
      "price": 12.00,
      "dietary": ["vegetarian"],
      "spiciness": "0/10",
      "keywords": ["salad", "greens", "healthy"]
    }
  ]
}

Required Fields

• id - Unique identifier for the item
• name - Display name of the menu item
• category - Menu category (e.g., "Appetizers", "Entrees", "Desserts")
• description - Brief description of the item
• price - Price in decimal format

Optional Fields

• image - Image filename (place images in assets/images/)
• dietary - Array of dietary tags (e.g., ["vegetarian", "vegan", "gluten-free"])
• spiciness - Spice level (e.g., "0/10", "5/10")
• keywords - Additional search terms
• allergens - List of allergens

SDK Configuration

SDKConfig config = SDKConfig.getInstance()
    .setLoggingEnabled(true)           // Enable debug logging
    .setMenuJsonPath("menu.json")      // Menu file path in assets/
    .setMonitoringEnabled(false);      // Disable performance monitoring

config.apply(getApplicationContext());

AI Mode Selection

// Use local AI processing (faster, more private)
menuSDK.setCloudAIEnabled(false);

// Use cloud AI (requires internet, more capable)
menuSDK.setCloudAIEnabled(true);

// Check current mode
menuSDK.getCloudAIEnabled(new AsyncResult() {
    @Override
    public void resolve(Boolean isEnabled) {
        String mode = isEnabled ? "Cloud AI" : "Local AI";
        Log.d("AI", "Current mode: " + mode);
    }
});

Voice Configuration

// Configure voice settings
voiceSDK = WhisperSDK.builder(this)
    .enableTTS(true)                   // Enable/disable voice output
    .setLanguage("en")                 // Language code
    .setTimeout(30000)                 // Max recording time (ms)
    .enableContinuous(false)           // Continuous vs single utterance
    .setEndOfSpeechTimeout(2000)       // Silence detection timeout (ms)
    .setDebugMode(false)               // Enable/disable debug logging
    .build();

Example Interactions

Developer Access

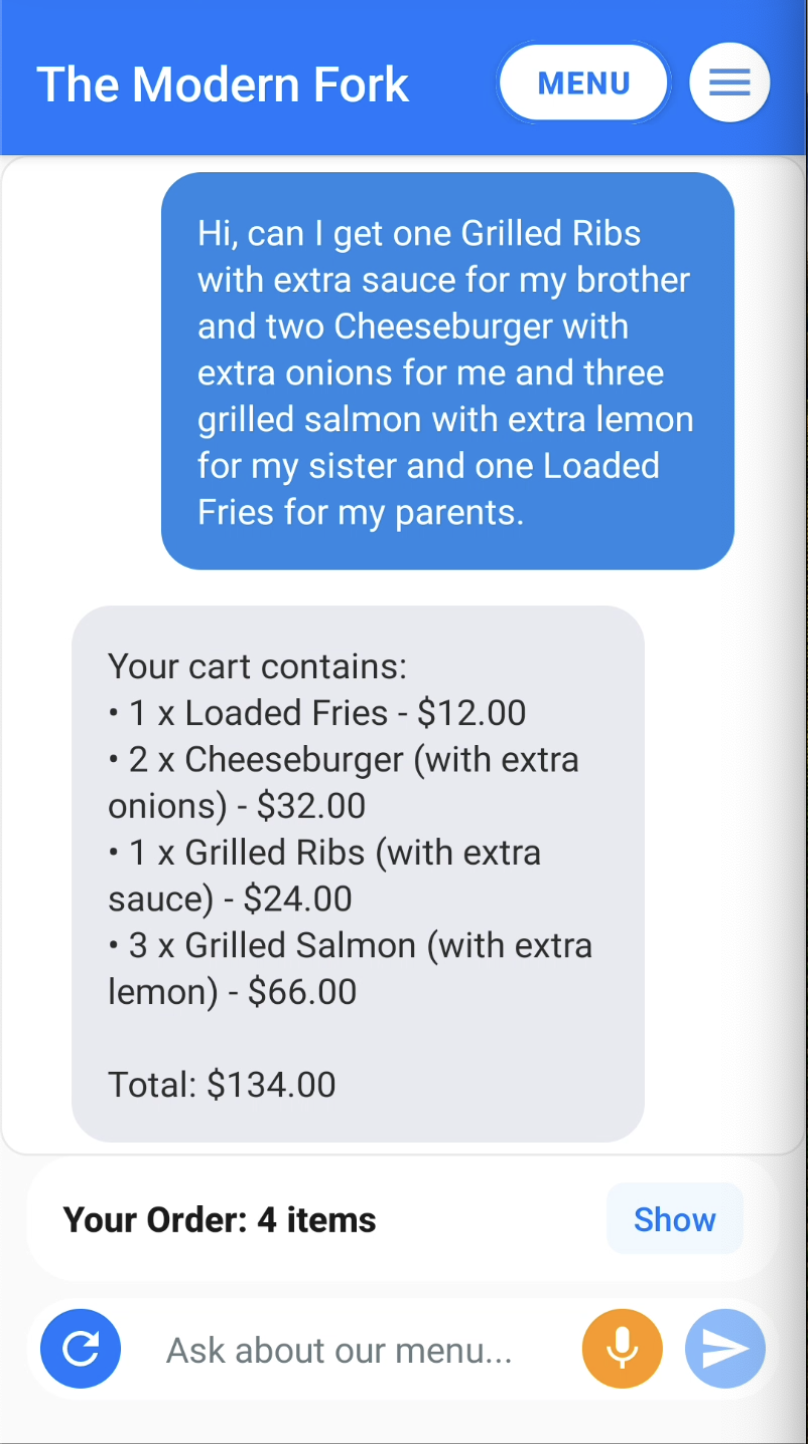

Developers can access or modify the cart via SDK methods:

Cart currentCart = MenuAssistantSDK.getCart();
currentCart.listItems();
currentCart.clear();

Cart updates are automatically synchronized with the conversational responses to maintain alignment between the assistant's output and the actual cart state.

Key Features

• Offline Processing: All voice recognition happens on-device without requiring internet connectivity.
• Multi-language Support: Recognizes and transcribes speech in 99 languages.
• Restaurant Terminology: Optimized for food and restaurant-specific vocabulary.
• NPU Acceleration: Utilizes the Qualcomm Neural Processing Unit for efficient processing.

Implementation Example

// Initialize the Whisper ASR component
WhisperASR whisperASR = new WhisperASR.Builder(context)
    .setModel("whisper-small")
    .setLanguage("en")
    .build();

// Start listening for voice input
whisperASR.startListening(new ASRCallback() {
    @Override
    public void onResult(String transcription) {
        // Process the transcribed text
        menuAssistant.processQuery(transcription);
    }

    @Override
    public void onError(int errorCode) {
        // Handle any ASR errors
        Log.e("ASR", "Error code: " + errorCode);
    }
});

Deployment Options

• Local-only Mode: All processing happens on-device with no external dependencies.
• Hybrid Mode: Combines on-device processing with cloud capabilities for complex queries.
• Cloud Fallback: Uses local processing by default but can fall back to cloud when needed.

Model Specifications

• Model Size: 0.6B parameters (4-bit quantized)
• Context Window: 2048 tokens
• Response Time: <1 second for typical queries
• Memory Usage: ~350MB RAM during inference

Architecture Overview

• CPU: Handles preprocessing, tokenization, and application logic.
• GPU: Accelerates matrix operations for the LLM inference.
• NPU: Optimizes voice processing and embedding generation.

Performance Benefits

• Reduced Latency: 3-5x faster inference compared to CPU-only processing.
• Lower Power Consumption: More efficient use of device resources.
• Improved Responsiveness: Near real-time interactions even on resource-constrained devices.

Implementation

// Switch to a different menu
menuAssistant.switchMenu("dinner_menu.json", new MenuSwitchCallback() {
    @Override
    public void onMenuSwitched() {
        // Menu successfully loaded
        showToast("Dinner menu now active");
    }

    @Override
    public void onError(String errorMessage) {
        // Handle menu switching errors
        Log.e("Menu", "Switch failed: " + errorMessage);
    }
});

Scheduled Switching

Menus can be scheduled to switch automatically at specific times:

// Configure automatic menu switching
MenuScheduler scheduler = new MenuScheduler();
scheduler.addSchedule("breakfast_menu.json", "06:00", "11:00");
scheduler.addSchedule("lunch_menu.json", "11:00", "17:00");
scheduler.addSchedule("dinner_menu.json", "17:00", "23:00");
scheduler.addSchedule("late_night_menu.json", "23:00", "06:00");
scheduler.activate();

Core Components

• MenuAssistant: The main interface for processing queries and managing interactions.
• WhisperASR: Handles voice-to-text conversion using OpenAI's Whisper model.
• LLMEngine: Manages the local language model for generating responses.
• CartManager: Tracks and manages order items and modifications.
• MenuDatabase: Stores and indexes menu items for efficient retrieval.

Component Diagram

Basic Integration

// Initialize the SDK
MenuAssistantSDK menuSDK = new MenuAssistantSDK.Builder(context)
    .setMenuFile("menu.json")
    .setModelPath("models/menu_assistant.gguf")
    .setLoggingEnabled(true)
    .build();

// Set up the UI listener
menuSDK.setResponseListener(new ResponseListener() {
    @Override
    public void onResponse(String response) {
        // Update UI with the response
        responseTextView.setText(response);
    }

    @Override
    public void onCartUpdate(Cart cart) {
        // Update cart display
        updateCartUI(cart);
    }
});

Processing Text Input

// Handle button click for text input
submitButton.setOnClickListener(new View.OnClickListener() {
    @Override
    public void onClick(View v) {
        String query = inputEditText.getText().toString();
        if (!query.isEmpty()) {
            // Show loading indicator
            loadingIndicator.setVisibility(View.VISIBLE);

            // Process the query
            menuSDK.processQuery(query, new QueryCallback() {
                @Override
                public void onComplete() {
                    // Hide loading indicator
                    loadingIndicator.setVisibility(View.GONE);

                    // Clear input field
                    inputEditText.setText("");
                }
            });
        }
    }
});

Voice Input Integration

// Handle microphone button
micButton.setOnClickListener(new View.OnClickListener() {
    @Override
    public void onClick(View v) {
        if (!isRecording) {
            // Start recording
            isRecording = true;
            micButton.setImageResource(R.drawable.ic_stop);
            statusTextView.setText("Listening...");

            // Start voice input
            menuSDK.startVoiceInput();
        } else {
            // Stop recording
            isRecording = false;
            micButton.setImageResource(R.drawable.ic_mic);
            statusTextView.setText("Processing...");

            // Stop and process voice input
            menuSDK.stopVoiceInput();
        }
    }
});

Informational Queries

Ordering Queries

Cart Management Queries

Model Loading Issues

• Problem: Model fails to load with "Out of memory" error.
• Solution: Ensure your application has sufficient memory allocation in the AndroidManifest.xml file by adding android:largeHeap="true" to the application tag.

• Problem: Model file not found error.
• Solution: Verify that the model file is correctly placed in the specified directory and that the path in the configuration is correct.

Voice Recognition Issues

• Problem: Microphone permission denied.
• Solution: Ensure your application requests and receives the RECORD_AUDIO permission at runtime.

• Problem: Poor voice recognition accuracy.
• Solution: Ensure the device is in a quiet environment and that the microphone is not obstructed. Consider using the larger Whisper model for better accuracy.

Performance Issues

• Problem: Slow response times.
• Solution: Enable GPU acceleration in the SDK configuration and ensure the device is not in battery saving mode.

• Problem: Application crashes during heavy usage.
• Solution: Implement proper resource management by unloading the model when not in use and monitoring memory usage.

Typical Project Layout

app/
├── src/
│   ├── main/
│   │   ├── java/
│   │   │   └── com/example/menuapp/
│   │   │       ├── MainActivity.java
│   │   │       ├── MenuActivity.java
│   │   │       └── utils/
│   │   │           └── SDKHelper.java
│   │   ├── res/
│   │   │   ├── layout/
│   │   │   │   ├── activity_main.xml
│   │   │   │   └── activity_menu.xml
│   │   │   └── values/
│   │   │       └── strings.xml
│   │   └── assets/
│   │       ├── menu.json
│   │       └── models/
│   │           ├── menu_assistant.gguf
│   │           └── whisper_small.bin
│   └── androidTest/
│       └── java/
│           └── com/example/menuapp/
│               └── SDKIntegrationTest.java
├── libs/
│   ├── GMK_V1.0.aar
│   └── GWK6490_V1.0.aar
└── build.gradle

Key Files and Directories

• libs/: Contains the SDK AAR files.
• assets/menu.json: The menu configuration file.
• assets/models/: Directory containing the LLM and ASR model files.
• SDKHelper.java: A utility class for managing SDK initialization and interactions.

Performance Optimization

• Lazy Loading: Load the model only when needed, not at application startup.
• Resource Management: Unload the model when not in use to free up memory.
• Background Processing: Run model inference in a background thread to avoid UI freezes.
• Caching: Cache common responses to reduce processing time for frequent queries.

User Experience

• Loading Indicators: Always show loading indicators during model processing.
• Error Handling: Provide clear error messages and recovery options.
• Voice Feedback: Give audio or visual cues when voice recording starts and stops.
• Progressive Loading: Load UI elements progressively while the model initializes.

Menu Configuration

• Detailed Descriptions: Provide comprehensive item descriptions for better query matching.
• Keyword Enrichment: Include alternative names and common misspellings in item keywords.
• Dietary Information: Always include complete dietary and allergen information.
• Regular Updates: Keep menu data current with seasonal changes and price updates.

Pre-Integration Checklist

• Verify device compatibility (Qualcomm QCM6490 chipset, Android 13+)
• Ensure sufficient storage space for model files (~700MB)
• Prepare menu data in the required JSON format
• Set up development environment with Android Studio Electric Eel or newer
• Download the SDK AAR files from the developer portal

Integration Checklist

• Add SDK AAR files to the project's libs directory
• Update build.gradle with necessary dependencies
• Add required permissions to AndroidManifest.xml
• Create assets directory and add menu.json file
• Implement runtime permission requests for microphone access
• Initialize the SDK in your application
• Set up UI components for user interaction

Testing Checklist

• Verify model loading and initialization
• Test basic menu queries and responses
• Validate cart operations (add, remove, modify items)
• Test voice input functionality
• Verify performance on target device
• Test error handling and recovery

License Terms

• Usage Scope: The SDK is licensed for use in commercial applications on Qualcomm QCM6490 devices.
• Distribution: You may distribute applications containing the SDK through official app stores or direct installation.
• Modifications: You may not modify, reverse engineer, or decompile the SDK AAR files.
• Attribution: Applications using the SDK must include attribution in the about section or settings.

Usage Limitations

• Device Limit: Standard license allows deployment on up to 100 devices.
• Enterprise License: Required for deployments exceeding 100 devices.
• Support: Technical support is provided for 12 months from purchase date.
• Updates: License includes access to updates for 12 months.

Development Tips

• Debug Mode: Enable debug logging during development to track SDK operations.
• Test Menu: Start with a small test menu before implementing your full menu.
• Emulator Testing: Test on a physical device, as emulators may not support all GPU features.
• Memory Profiling: Use Android Studio's Memory Profiler to monitor memory usage.

Deployment Tips

• APK Size: Use Android App Bundle to reduce download size for different device configurations.
• Model Updates: Implement a mechanism to update models without requiring a full app update.
• Error Reporting: Implement crash reporting to collect information about issues in production.
• User Feedback: Collect user feedback to improve menu data and response quality.
